Parts and Hardware

Parts Catalog
Part #53
4"x5" Wall Terminal

Wall Termination plate for terminating rail into walls. Comes standard with 7/16" holes for 3/8" fasteners.

Part #56
2.6"x7" Cast
Base-mount

Standard basemount for mounting posts to structural members. Comes standard with 7/16" slots for 3/8" fasteners.

Part #57
4"x6" Cast
Base-mount

Standard basemount for mounting posts to concrete. Comes standard with 7/16" holes for 3/8" fasteners.

Part #25
Side-mount Bracket

Sidemount bracket for mounting posts to concrete or structural members. Comes standard with 7/16" slots for 3/8" fasteners.

Part #25.4
Extended Side-mount Bracket

Extended Sidemount bracket for mounting posts to concrete or structural members. Comes standard with 7/16" holes for 3/8" fasteners.

Embed Cans

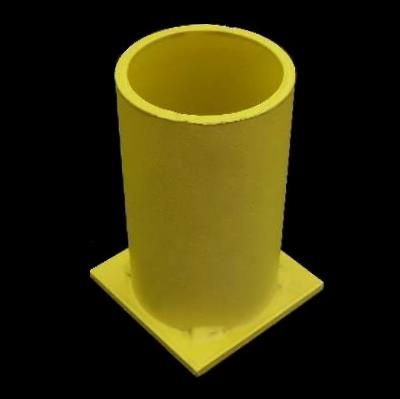

There are a multitude of embed cans available. From Aluminum to Stainless Steel and from simple block-out to embed cans with integral collars and cover caps.



Please feel free to contact us with your embed can needs.

Part #55
2.6"x6" Adjustable Cast Base mount

Standard basemount mounting posts to stair stringers or sloped structural members. Comes standard with 7/16" slots for 3/8" fasteners.

Part #52
2.6"x7" Offset Cast Base mount

Offet basemount for mounting posts to structural members. Comes standard with 7/16" holes for 3/8" fasteners. Use only at corner post situations.

Part #58
4"x6" Adjustable Cast Base-mount

Standard basemount for mounting posts to sloped concrete. Comes standard with 7/16" holes for 3/8" fasteners.

Part #26
Side-mount Bracket

Offset Sidemount bracket for mounting posts to concrete or structural members. Comes standard with 7/16" slots for 3/8" fasteners.

Part #28.4
Wall-mount Bracket

Wall mount bracket for mounting handrail to walls. Comes standard with 7/16" hole for 3/8" fastener.

Custom hole sizes available upon request.



Parts can be used with all Golden Railings, Inc. mechanical handrail systems.

Toe Plates and Hardware
Part #14
"Z" Toe Plate

"Z" Toe Plate used with all Golden Railings, Inc. mechanical handrail systems.



Available in clear anodize finish, other finishes available by special order only.

Toe Plate
(1 1/2" Clamp)

Toe Plate (1 1/2" clamp) Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. Friction Fit Handrail System.

Toe Plate
(1" Clamp)

Toe Plate (1" clamp) for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. riveted and TCF systems.

Plate

Plate for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. riveted and TCF systems.

Narrow L-Shaped Plate

Narrow L-Shaped Plate for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. riveted and TCF systems.

Plate Cover

Plate Cover for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. Friction Fit Handrail System.

Large Plate

Large Plate for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with all Golden Railings, Inc. railing systems.

Large L-Shaped Bracket

Large L-Shaped Bracket for Sch.40 Pipe.



Used with Golden Railings, Inc. riveted and TCF railing systems.

Fitting Caps and Misc
Part #10
Tee Fitting

Standard Tee Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with Golden Railings, Inc. riveted and TCF systems.



For Sch.80 pipe use part #10.8

For curved rail use part #10C

Part #10F
Tee Fitting
(Friction)

Friction Fit Tee Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.

Used with Golden Railings, Inc. Friction Fit Handrail System.

For Sch.80 use part #10.8F

For curved rail use part #10CF.

Part #11
Corner Fitting

Corner Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.

Used with Golden Railings, Inc. riveted and TCF systems.

For Sch.80 pipe use part #11.8

For curved rail use part #11C

Part #11F
Corner Fitting
(Friction)

Friction Fit Corner Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.

Used with our riveted and TCF systems. For Sch.80 pipe use part #11.8F. For curved rail use part #11CF

Angle Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only. Used with Golden Railings, Inc. riveted and TCF systems. For Sch.80 pipe use part #13.xx.8. For curved rail use part #13.xx.C. Please note: xx designation equals the stair angle in even degrees. Example 32.47* stair would use part #13.32. Angles available from 2* to 58*

Part #13XX
Angle Fitting

Friction Fit Angle Fitting for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only. Used with Golden Railings, Inc. Friction Fit Handrail System.

For Sch.80 use part #13xx.8F

For curved rail use part #13.xxCF. Angles available from 2* to 58*.

Part #13XXF
Angle Fitting
(Friction)
Part #12
End Cap

Endcap for Sch.40 Pipe. Available in clear anodize finish, other finishes available by special order only.



Used with all Golden Railings, Inc. railing systems.



For Sch.80 pipe use part #12.8.

Part #17
Splice Sleeve

Splice Sleeve / expansion joint

for Sch.40 Pipe.



Used with Golden Railings, Inc. riveted and TCF railing systems. Also available for 1 1/4", 2" pipe and Sch.80, please specify when ordering.

Part #17F
Splice Sleeve
Friction Fit

Friction Fit Splice Sleeve / expansion joint for Sch.40 Pipe.

Used with Golden Railings, Inc. Friction Fit railing systems.

Also available for 1 1/4", 2" pipe and Sch.80, please specify when ordering.

Part #28.4 CT
Cantilever Bracket

Cantilever bracket assembly for mounting grab rail to guard rail. Comes standard with part 10CT (fitting) and Part #50 3/8" fastener w/ acorn nut. Used with all Golden Railings, Inc. mechanical handrail systems.

Parts #34& 35
Gate Hardware

Gate Latch (part #34) and (2) gate hinges (part #35). Comes with all installation hardware.

Used with all Golden Railings, Inc. mechanical handrail systems.

Part #20
Post Collar

Standard Post Collar for 1 1/2"pipe.



Used with all Golden Railings, Inc. mechanical handrail systems.

Custom Parts

With a fully equipped machine shop at our disposal, Golden Railings, Inc. can produce custom parts to repair or tie into any existing railing.

Pictured right are parts made for 2" tube rail and 1 1/4" mechanical rail, however we can manufacture parts for any fittings.

Visit the FAQ's page for additional information about parts and services, or contact us directly with your questions.
